Weight: 100g/m2-1000g/m2
Width: 1m-6m
Length: 30m-150m
Color: White, black, orange, green
Brand: BPM Geosynthetics

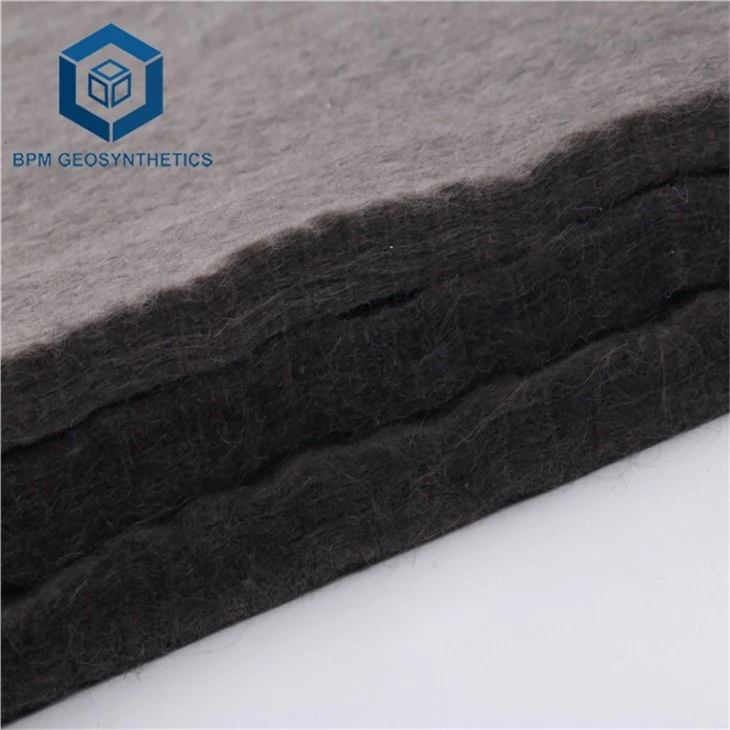

Thermal Bonded Geotextile is the important kind of geotextile material which can be made by polyester and polypropylene filament by needle punching and thermally bonding process. After needle punched and spun-bonded technology process, non woven fabric can form good features such as high tensile strength, excellent permeability, high elongation, durable CBR puncture resistance and UV stabilized.
Non woven geotextile fabric has proven to be among the most versatile and cost-effective ground modification materials. The application non woven needle puched geotextile fabric has expanded rapidly into nearly all areas of civil, geotechnical, environmental, coastal, and hydraulic engineering. BPM non woven Thermal bonded PET geotextile complies with the GB/17638-2017 standard which is manufactured by our own factory and sold at competitive factory prices.
Benefits
1.Good drainage performance and vertical permeability. Due to the large thickness of the non-woven geotextile and the needling reinforcement, it has good plane drainage performance and vertical permeability.
2.Good anti-ultraviolet performance, non-woven PET geotextile has good anti-ultraviolet radiation performance, which ensures long service life.
3.Good corrosion resistance: Non-woven geotextiles are resistant to different chemical substances such as acid and alkali, gasoline, diesel in the soil.
| Test | Units | BPM100 | BPM150 | BPM200 | BPM250 | BPM300 | BPM350 | BPM400 | BPM450 | BPM500 | BPM600 | BPM800 | |
| Mechanical Properties | Tensile Strength | kN/m | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 |
| (MD and XMD) | |||||||||||||
| Trapezoidal | |||||||||||||
| Tear Strength ≥ | kN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | |
| (MD and XMD) | |||||||||||||
| CBR Burst | kN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| Strength ≥ | |||||||||||||
| Weight | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
| Weight Variation | % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| Thickness | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| Width Variation | % | -0.5 | |||||||||||
| Elongation at Break | % | 25 ~ 100 | |||||||||||
