Products Description

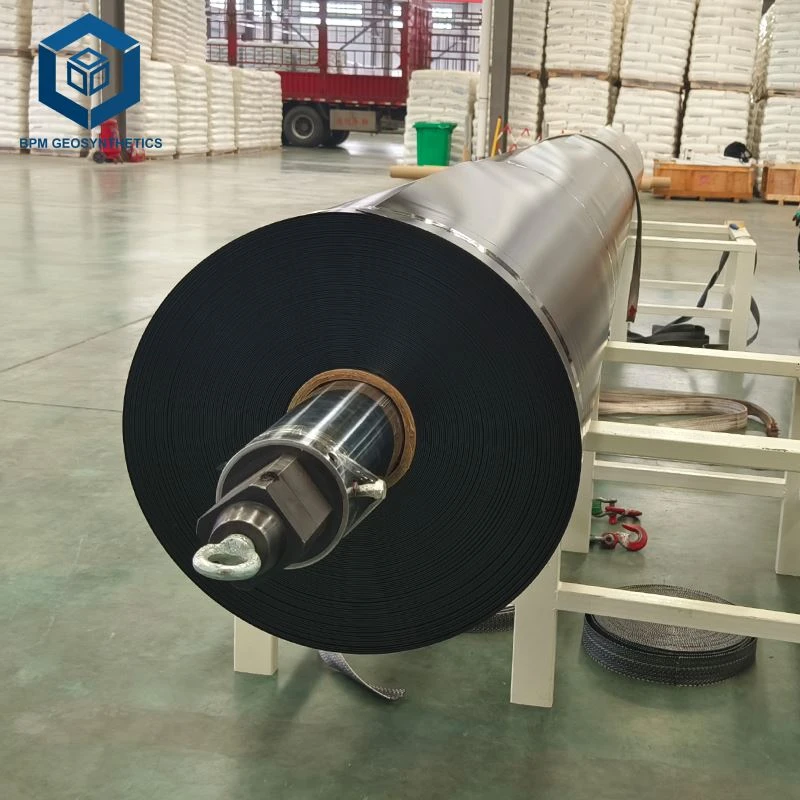

HDPE geomembrane liner is a high density polyethylene material used mainly in geotechnical engineering projects. It is a flexible, impermeable membrane that is used to line and contain fluid or gas in various applications such as landfills, ponds, reservoirs, and mines. The material is durable and resistant to punctures, tears, and UV radiation, making it an ideal choice for long-term containment solutions. Its flexibility also allows it to conform to the shape of the underlying terrain. Overall, HDPE geomembrane liner is an effective and reliable solution for preventing soil contamination and protecting the environment.

Hdpe Geomembrane Liner 5

**Geomemebranes Liner Details**
Material	Imported Geomembrane specialized High density polyethylene material(0.941g/cm³-0.97g/cm³)
Technology	Film-Blowing and Calendered Extruder Technology
Thickness	0.2mm 0.3mm 0.5mm 0.75mm 1.0mm 1.5mm 2.0mm
Roll Width	2m 4m 5.8m 6m 7m 7.5m 8m 10m or custom-made
Roll Length	50m 100m 150m 200m 250m 280m 300m 350m or custom-made
Price	Direct Factory Price
Package	PP woven plastic bags,OEM
Payment Term	T/T ,L/C
Application	Aquaculture,Landfill,Mining,Oxidation Pond,Agriculture Lake,Oil

Hdpe Geomembrane Liner

Hdpe Geomembrane Liner 3

Hdpe Geomembrane Liner

Products Application

BPM geomembranes is widely used for canal, aquaculture, irrigation ponds and remediation liners, other liner applications include landfills, waste water treatment lagoons, oil and gas exploration, power plants, etc .

Aquaculture. Geomembrane liners can be used as fish ponds, shrimp pond and other aquacultures. 0.3mm 0.5mm,0.75mm,1.0mm

1001

Landfills. Bottom landfill liner, landfill sealing cover, leachate regulating pool liner, etc. 0.75mm 1.0mm 1.5mm 2.0mm

2001

Water Treatment System. Smooth Geomembrane is applied to the adjustment of the power plant and sewage treatment pool or water treatment system.1.5mm 2.0mm Hdpe Geomembrane Liner

3001

Mining. HDPE Geomembrane is applied for mining industry as washing pool, pool heap leaching, heap yard, dissolving tank, storage tank, the bottom of the tailing seepage control, etc. Hdpe Geomembrane Liner

4001

Other Applications. Environment protection and sanitation, water conservancy, municipal projects, landscaping, petrochemical industry, salt industry, agriculture, etc.

Company Description

BPM had been specialized in delivering one stop HDPE geomembranes pond liner and other geosythetics to worldwide customers for over 10 years. In recent years, we had been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We had invested 10 million dollars into our manufacturing factory with advanced production lines and optimized manufacturing processes. BPM brand geomembranes and other geosythetics and solutions can meet your requirements by our solid technologies and professional staffs.

BPM had provided many types of effective and states of the art geomembranes and other geosythetics to over 36 countries. Our main customers are from Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.

HDPE Smooth Geomembrane

Hdpe Geomembrane Liner1

Properties		Test Method	Test Value
			0.5 mm	0.75mm	1.00 mm		1.25 mm	1.50 mm	2.00 mm	2.50 mm	3.00 mm
Maximum Deviation of thickness			-15%	-15%	-15%		-15%	-15%	-15%	-15%	-15%
Density (min. ave.)		D 1505/D792	0.940 g/cc	0.940 g/cc	0.940 g/cc	0.940 g/cc		0.940 g/cc	0.940 g/cc	0.940 g/cc	0.940 g/cc
Tensile Properties(min.ave)	Yield strength Break strength	D6693	8N/mm	11 N/mm	15 N/mm		18 N/mm	22 N/mm	29 N/mm	37 N/mm	44 N/mm
			14N/mm	20N/mm	27 N/mm		33 N/mm	40 N/mm	53N/mm	67 N/mm	80 N/mm
Yield elongation			12%	12%	12%		12%	12%	12%	12%	12%
Break elongation			700%	700%	700%		700%	700%	700%	700%	700%
Tear Resistance (min. ave.)		D 1004	63 N	93 N	125 N		156 N	187 N	249 N	311 N	374 N
Puncture Resistance (min. ave.)		D 4833	160N	240N	320 N		400 N	480 N	640 N	800 N	960 N
Carbon Black Content (range)		D 4218	2.0-3.0 %	2.0-3.0 %	2.0-3.0 %		2.0-3.0 %	2.0-3.0 %	2.0-3.0 %	2.0-3.0 %	2.0-3.0 %
Oxidative Induction Time (OIT) (min.ave.) Standard OIT		D 3895	100 min.	100 min.	100 min.		100 min.	100 min.	100 min.	100 min.	100 min.
Oven Aging at 85°C Standard OIT (min. ave.) - % retained after 90 days		D 5721 D 3895	55%	55%	55%		55%	55%	55%	55%	55%
UV Resistance High Pressure OIT (min. ave.) - % retained after 1600 hrs		D 3895 D 5885	50%	50%	50%		50%	50%	50%	50%	50%
